JWEI reserves the right of final interpretation of the following parameters, subject to change without prior notice.
| Model | SC1625 Loading-cutting-unloading |

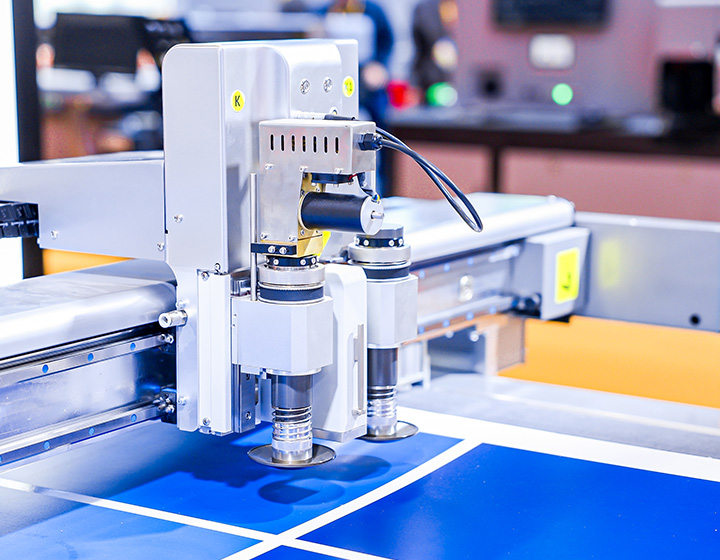

| Multi-functional Tool Head | Double tool fixing holes, quick insert tool fixing, easy to replace cutting tools, plug and play, set cutting, creasing, drawing, router and other functions in one |
| Tools | Electric oscillating tool, drag knife tool, plotting tools |
| Max. Cutting Speed | 1800mm/s (Varies with different cutting materials) |
| Max. Cutting Thickness | 50mm (Customizable according to different cutting materials) |
| Max loading height (include Pallet) | 750mm |
| Max single sheet thickness | 22mm |
| Max single sheet feed weight | 5kg |
| Max loading-unloading size(W*L) | 1600mm×2500mm |
| Min loading-unloading size(W*L) | 600mm×900mm |
| Material | ABS board, PVC board, space board, aluminium-plastic board, lamp sheet, back glue, PVC foam board, KT board, acrylic, magnetic sticker, self-adhesive, etc |
| Material Fixation Mode | Vacuum suction |
| Transmission port | Ethernet port |
| Drive System | High-end digital servomotor, imported linear guide, synchronous belt, lead screw |
| Rated Power | 17kW |
| Rated Voltage | 380V±10% |
| Effective Cutting Size (WxL) | 1600mm×2500mm |
| Machine Size (WxLxH) | 2620mm×10660mm×1325mm (Loading area: 2060mm×3630mm×1250mm, Cutting area: 2504mm×3571mm×1325mm, Unloading: 2060mm×3630mm×1250mm) |

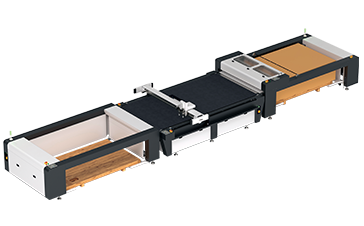

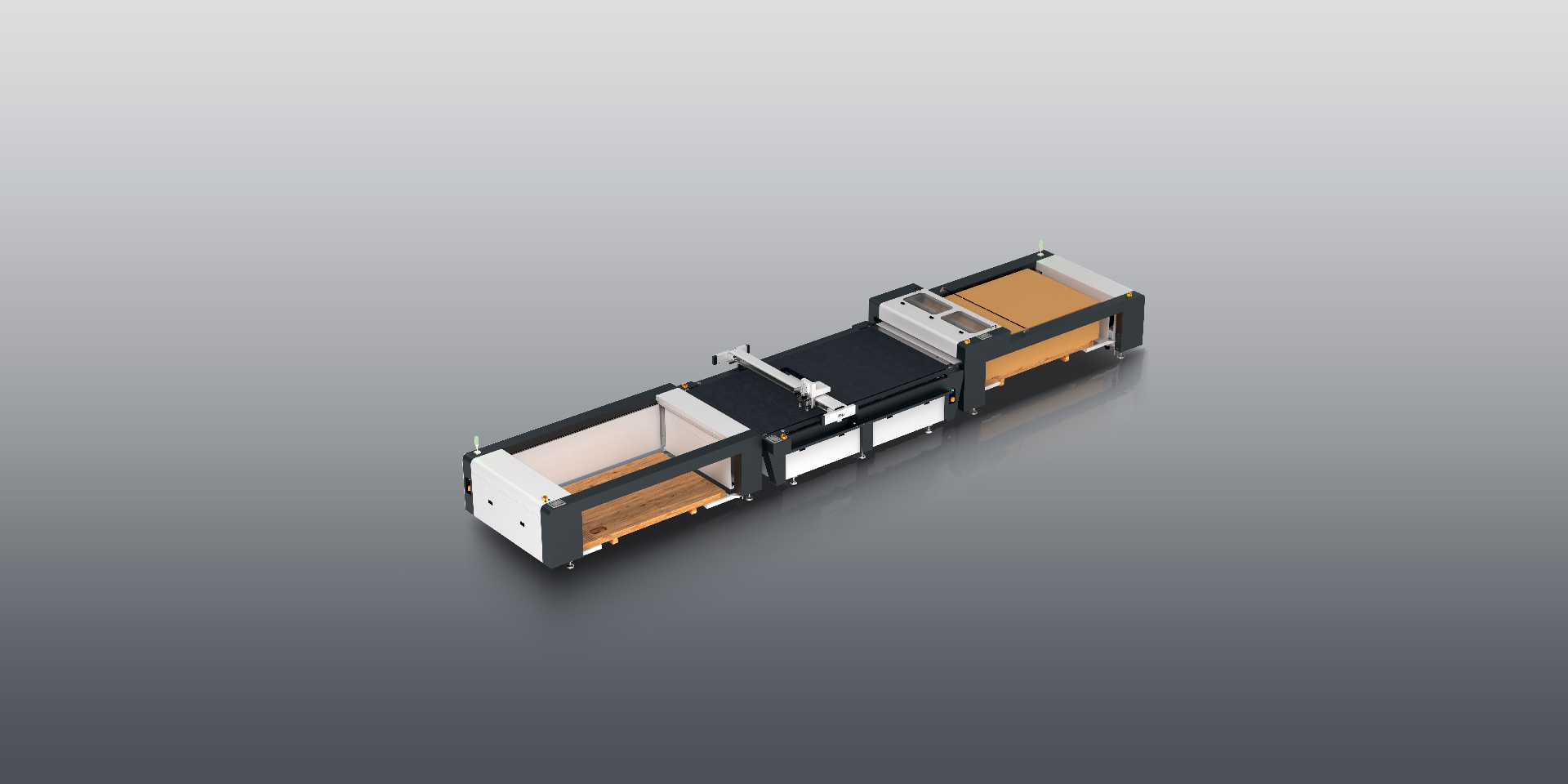

JWEI SC1625 automated digital cutting system (featuring the advanced CB03II-2516-RM platform) offers a turnkey solution that completely integrates heavy-duty material loading, high-speed precise digital cutting, and efficient product unloading into one hands-free production cycle.
The SC1625 automated digital cutting table is the perfect backbone for automated, small-batch B2B industrial packaging lines, processing a wide spectrum of materials:

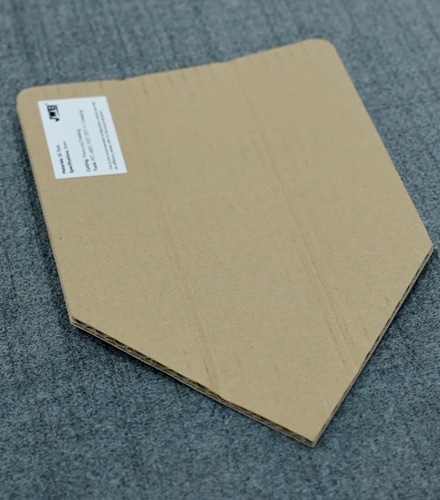

Corrugated paper & Honeycomb cardboard

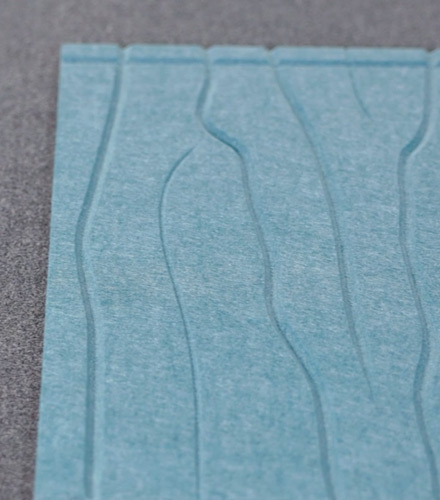

10mm+ PET acoustic panels

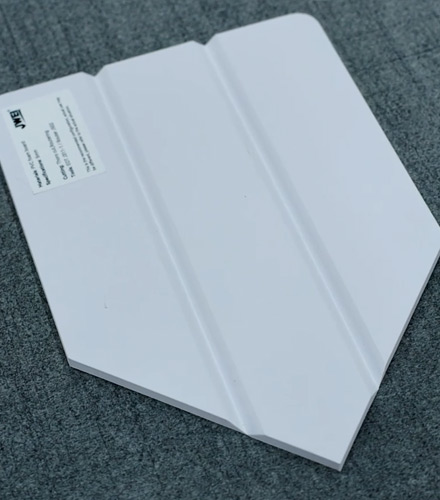

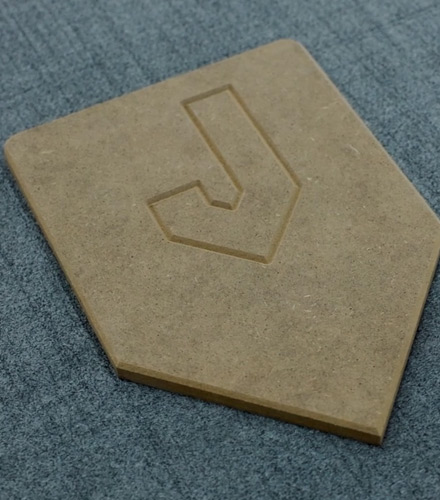

Greyboard & MDF foam panels
PVC foam board, KT board & Acrylic
ABS board, Aluminium-plastic composite sheets, and Self-adhesive magnetic stickers.
Note: * will be determined based on the specific materials in the actual application scenario.
